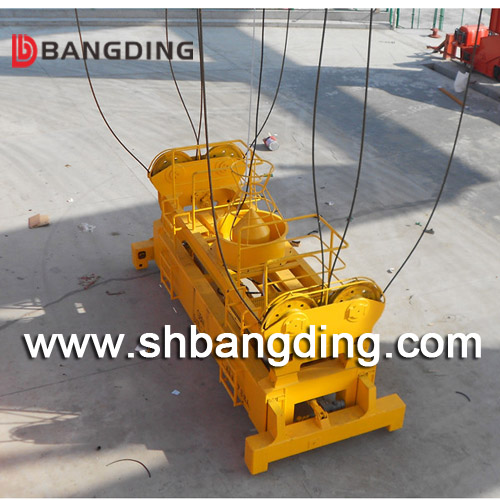

GBD000 steel plate container spreader
Pageviews： Release Time：2017-10-21
As the main devices of port steel lifting, GBD000 steel plate container spreader is concluded by Rotating hanger and steel plate spreader. When buying an crane to load steel plates, we need an appropriate spreader to match. This GBD000 spreader designed on clients’ requirements can rotate in ±110 degree (or 360 degree), has the large lifting amount, high reliability and easy to repair and maintenance.
 TYPE PARAMETER |
GBD000 steel plate container spreader |
| Dead Weight |
20 t（Contain sling and turning on the hanger） |
| SWL | 65 t（up），50 t (down) |
| ling length of steel plate can be lifted | 7.5n-13.75m、12m-22m |
| Rotating motor power | 11kw |
| control voltage | 220 Vac,50 Hz |
| The rotation speed frame | 20s/±110°、33s/360° |
| Sling adjustable speed | 8.72m/min |
| Sling adjustable motor power | 0.55kw×2 |
| Electro-magnetic chuck type | Permanent Magnet |
